SM G657A1 900um Tight Buffer LSZH 1M SC APC Fiber Optic Pigtail

Product Categories
Shenzhen Knofc Communication Co., Ltd.
Contact Now

SM G657A1 900um Tight Buffer LSZH 1M SC APC Fiber Optic Pigtail

  • 1
  • 2

Brand Name : KNOFC or OEM

Model Number : Pigtail SC/APC

Certification : CE/ISO9001

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20000/week

Packaging Details : bag

Fiber type : Single mode 9/125

Connector type : SC/APC

Length : 1M or Customized

Cable color : White or Yellow

Cable diameter : 0.9mm

Insertion loss : ≤0.3dB

Operating Temperature : -20°C to+50°C

Contact Now

SC APC Pigtail Optical SM G657A1 900um Tight Buffer LSZH 1M



Description:

The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on one ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.



Features:

  • Good durability.
  • Good exchangeability.
  • High temperature stability.
  • Low insertion loss and back reflection loss.
  • Superior Quality Standard PC/UPC/APC Polishin.



Application:

  • FTTH, LAN, Test equipment, Military industry.
  • Outside plant.
  • Premise networks.
  • Aerial distribution.
  • Measuring equipments.
  • Fiber optic communication system.
  • Optical active component and equipment.

Specification:

 Parameter  Unit  Mode Type  PC  UPC  APC
 Insertion Loss  dB  SM  ≤0.3  ≤0.3  ≤0.3
 Insertion Loss  dB  MM  ≤0.3  ≤0.3  -----
 Return Loss  dB  SM  ≥50  ≥50  ≥60
 Return Loss  dB  MM  ≥35  ≥35  -----
 Fiber cable  Material  PVC, LSZH
 Fiber cable  Diameter  0.9mm, 2.0mm, 3.0mm
 Connector type    SC, LC. ST. FC
 Repeatability  dB  Additional loss<0.1db,return loss< 5 dB
 Interchangeability  dB  Additional loss<0.1db,return loss< 5 dB
 Connection times  times  >1000
 Operating Temperature  ℃  -20℃- +70℃
 Storage Temperature  ℃  -20℃- +70℃

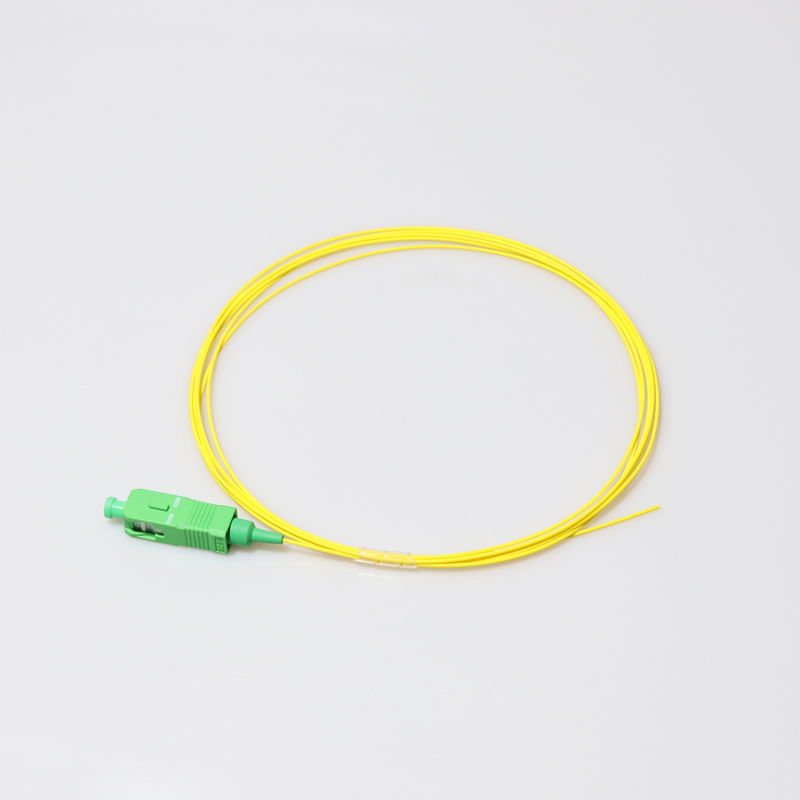

SM G657A1 900um Tight Buffer LSZH 1M SC APC Fiber Optic Pigtail

SM G657A1 900um Tight Buffer LSZH 1M SC APC Fiber Optic Pigtail
