Fan Out 12 Cores SC/APC Ribbon Patch Cord

Product Categories
Shenzhen Knofc Communication Co., Ltd.
Contact Now

Fan Out 12 Cores SC/APC Ribbon Patch Cord

  • 1
  • 2

Brand Name : KNOFC or OEM

Model Number : Pigtail SC/UPC

Certification : CE/ISO9001

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20000/week

Packaging Details : bag

Fiber type : Single mode 9/125

Connector type : SC/UPC

Length : 1M or Customized

Cable color : White or Yellow

Cable diameter : 0.9mm

Insertion loss : ≤0.3dB

Operating Temperature : -20°C to+50°C

Contact Now

Pigtail 12 Cores SC/APC Ribbon Pigtail Fiber Optic Fan-Out



Description:

Optical Fiber Pigtail can provide a quick and easy termination of fibers in the field.Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.Our quick connector system removes any requirements for epoxy,adhesives or costly curing ovens.All the key steps have been done in the factory to ensure every connection is excellent.



Features:

1.Low cost
2.Low Insertion Loss & PDL
3.High return loss (low amounts of reflection at the interface)
4.Factory-terminated and Tested
5.Ease of installation
6.Reliability
7.Low environmental sensitivity
8.Connector with Ceramic Ferrules



Application:

1.Access Network
2.Telecom/CATV Systems
3.Active device termination
4.Local Area Networks (LANs)
5.Metro
6.Test equipment
7.Data processing networks
8.Wide Area networks (WANs)
9.FTTX



Specification:

 Parameter  Unit  Mode Type  PC  UPC  APC
 Insertion Loss  dB  SM  ≤0.3  ≤0.3  ≤0.3
 Insertion Loss  dB  MM  ≤0.3  ≤0.3  -----
 Return Loss  dB  SM  ≥50  ≥50  ≥60
 Return Loss  dB  MM  ≥35  ≥35  -----
 Fiber cable  Material  PVC, LSZH
 Fiber cable  Diameter  0.9mm, 2.0mm, 3.0mm
 Connector type    SC, LC. ST. FC
 Repeatability  dB  Additional loss<0.1db,return loss< 5 dB
 Interchangeability  dB  Additional loss<0.1db,return loss< 5 dB
 Connection times  times  >1000
 Operating Temperature  ℃  -20℃- +70℃
 Storage Temperature  ℃  -20℃- +70℃

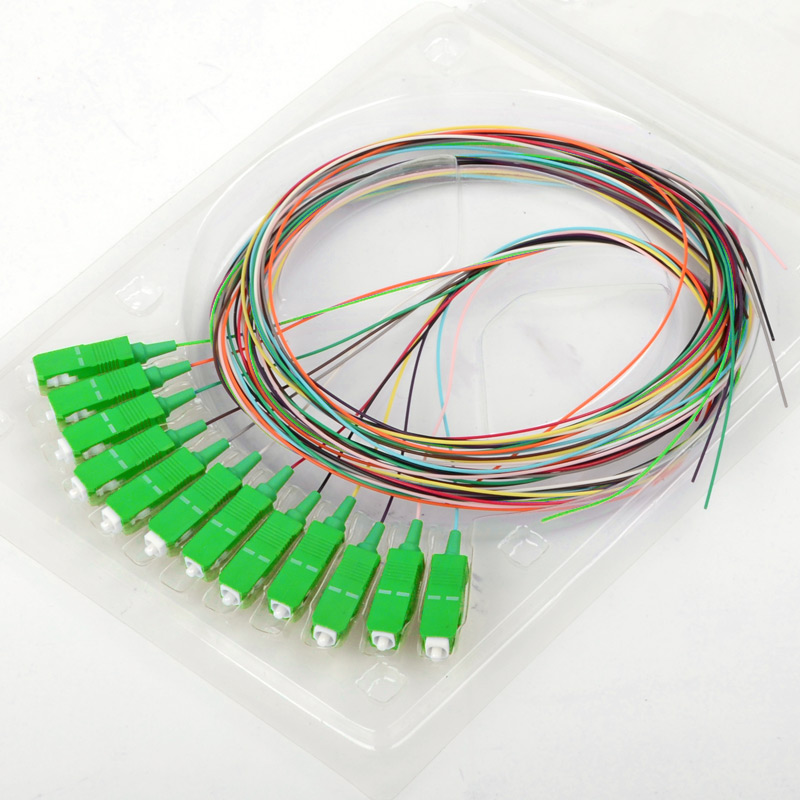

Fan Out 12 Cores SC/APC Ribbon Patch Cord

Fan Out 12 Cores SC/APC Ribbon Patch Cord
