4 Core G657A 900um Tight Buffer Figure 8 Aerial Drop Cable

  • 1
  • 2

Brand Name : KNOFC

Model Number : GYTC8H

Certification : CE/ISO9001

Place of Origin : China

MOQ : 2km

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200000M/Week

Delivery Time : 8-10 working days

Packaging Details : Wooden reel

Fiber count : 2-12 Core

Fiber type : G657A

Strength member : Messenger wire

Outer sheath material : LSZH - Low smoke zero halogen

Packaging : Wooden reel

Application : FTTH

Life expectancy : more than 30 years

Operating Temperature : -40°C to+70°C

Contact Now

Figure-8 Aerial Drop Cable 4 Core G657A 900um Tight Buffer



Description:

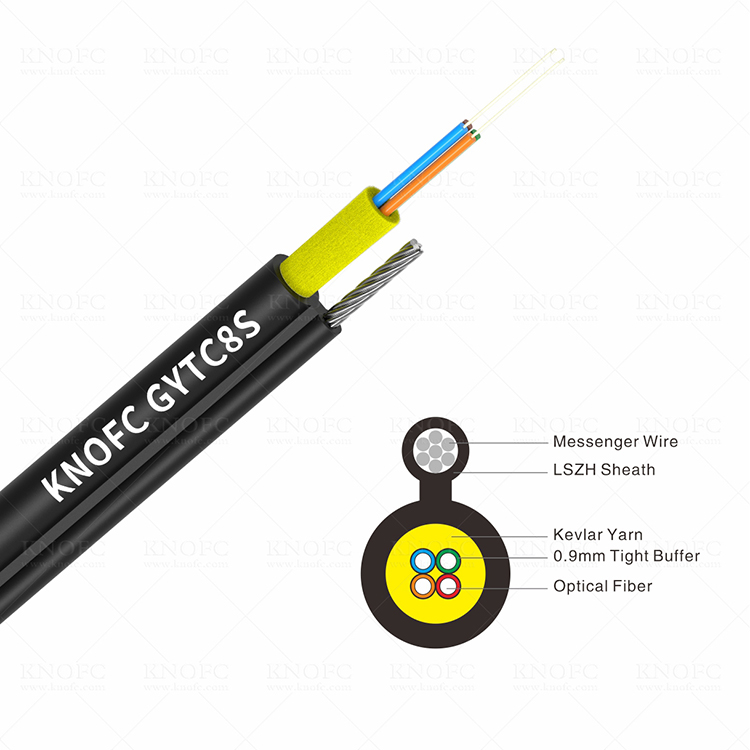

The drop cable consists of individually color coded 900µm secondary coated fibers reinforced with aramid yarns and covered with UV and flame resistant LSZH jacket.The cable cross section is figure 8 made with a messenger wire strength member.



Characteristics:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meets the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.



Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. As FTTH cable,for outdoor horizontal and vertical cabling.



Technical Data:

 Item  Contents  Value
 Central strength member  Material  Messenger
 Central strength member  Diameter  1.2mm
 Outer sheath  Material  LSZH
 Outer sheath  Thickness  0.5mm~0.8mm



Cable Mechanical characteristic:

  Cable type   Diameter(mm)   Weight
 (kg/km)		   Tensile strength
  Long/short term
         (N)		   Bending radius
  Dynamic/static
         (mm)		  Storage temperature
          ( ℃ )
 GJXFH-1~4          6.0*3.0      45          300/600         20D/10D             -40~+70
 GJXFH-4~12          6.5*3.8      55          300/600         20D/10D             -40~+70



Main mechanical & environmental performance test:



Item Test Method Acceptance Condition
Tensile Strength
IEC 794-1-2-E1		 - Load: Short term tension
- Length of cable: about 50m		 - Fiber strain £ 0.15%
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage
Crush Test
IEC 60794-1-2-E3		 - Load: Short term crush
- Load time: 1min		 - Loss change £ 0.05dB@1550nm
- No fiber break and no sheath damage.
Impact Test
IEC 60794-1-2-E4		 - Points of impact: 3
- Times of per point: 1
- Impact energy: 5J		 - Loss change £ 0.1dB@1550nm
- No fiber break and no sheath damage
Temperature Cycling Test
YD/T901-2001-4.4.4.1		 - Temperature step:
+20℃→-40℃→+70℃ →+20℃
- Time per each step: 12 hrs
- Number of cycle: 2		 - Loss change £ 0.05 dB/km@1550 nm
- No fiber break and no sheath damage.
