Outdoor Fiber Corning 5.0mm FTTH Drop Cable Mini SC APC

Product Categories
Shenzhen Knofc Communication Co., Ltd.
Contact Now

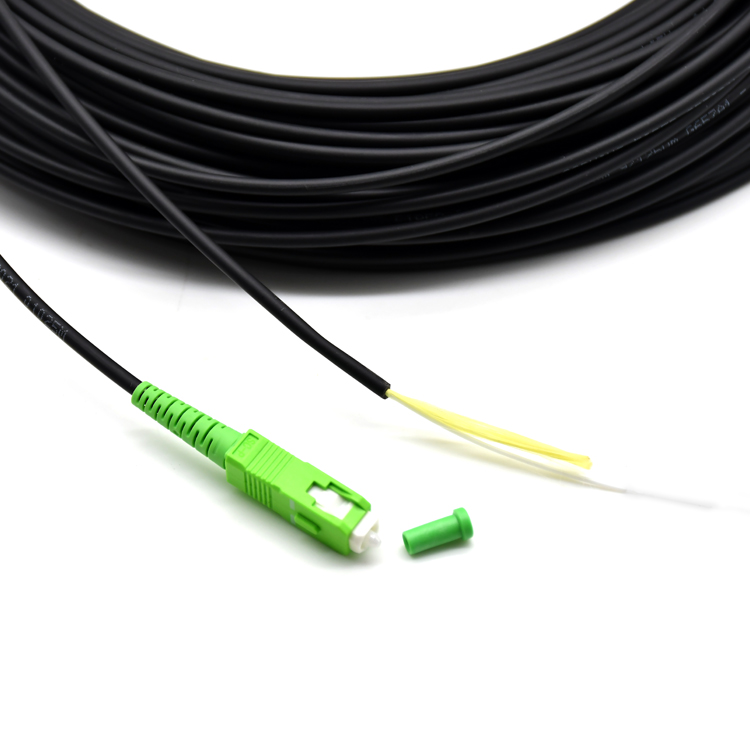

Outdoor Fiber Corning 5.0mm FTTH Drop Cable Mini SC APC

  • 1
  • 2

Brand Name : KNOFC or OEM

Model Number : Corning Patch Cord SC/APC

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20000pcs/Month

Packaging Details : Individual box or customized

Connector type : SC/APC

Cable type : Drop Cable

Length : 50M 100M 150M or Customized

Application : Outdoor FTTH

Fiber type : G657A1, G657A2 or as your request

Fiber brand : YOFC / Fiberhome / Corning / KNOFC

Jacket material : HDPE / LSZH / TPU

Operating Temperature : -40°C to+70°C

Contact Now

5.0mm Patch Cord FTTH Outdoor Fiber Corning Mini SC/APC Drop Cable



Description:

SC APC Connector Patch Cord Corning Fiber. It provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity and Suitable for flat drop cable,3.0mm round cable, 5.0mm round cable. the environmentally sealed and hardened connector to reduce the cost and the time of drop cable deployment in optical access networks.



Features:

  • 1. Available in multiple fiber lengths to meet all your FTTX design drop deployment.
  • 2. Suitable for FTTX and outdoor temperature extremes Ensures functionality in harsh weather environments.
  • 3. Designed to reduce the cost and time of drop fiber deployment in the network.
  • 4. Provides superior weather resistance for FTTX and other outdoor applications.
  • 5. Can be installs without special tooling.
  • 6. 100% tested assemblies built in a controlled environment.
  • 7. Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber.
  • 8. Flexibility and reliability provides fast and simple deployments within a network.
  • 9. Provides bend protection for installation and long term use.
  • 10. Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.



Application:

  • 1. Fiber optic communications in harsh outdoor environments.
  • 2. Outdoor communication equipment connection.
  • 4. Remote wireless Base Station.
  • 4. FTTx ISP Project.



Specification:

 Product Name  SC APC Armored Patch Cord
 Length  50M,100M, 150M
 Connection Style  Simplex
 Fiber Type  G657A2
 Typical Insertion Loss  ≤ 0.20 dB
 Maximum Insertion Loss  ≤ 0.30 dB



Connector technical data:

 Items  Values
 Connector Type  SC/APC
 Insertion Loss  <0.3dB
 Return Loss  >60dB



Cable technical data:

 Item  Values
 Cable Type  Outdoor Drop Cable
 Sheath Material  LSZH
 Strength member  Aramid Yarn
 Cable Diameter  3.0mm or 5.0mm



Cable Paremeters:

 Cable type  Diameter(mm)   Weight
 (kg/km)		   Tensile strength
   Long/short term
            (N)		   Bending radius
  Dynamic/static
         (mm)		  Storage temperature
            ( ℃ )
 Drop Cable    5.0mm     22         300/600       20D/10D          -20~+70



Outdoor Fiber Corning 5.0mm FTTH Drop Cable Mini SC APC




Product Tags:

Outdoor Fiber FTTH Drop Cable



5.0mm FTTH Drop Cable



SC APC Fiber Optic Patch Cord


Buy cheap Outdoor Fiber Corning 5.0mm FTTH Drop Cable Mini SC APC product

Outdoor Fiber Corning 5.0mm FTTH Drop Cable Mini SC APC Images
