1 Strand HDPE SC APC Horizontal Drop Cable G657A2 50m 100m

1 Strand Horizontal Drop Cable Flat SC/APC Connectorized in Mini IP

Description:

Mini IP SC APC Connector Compatible with Corning Optitap Adapter. IP68 Outdoor waterproof field assembly fast connector is factory -terminated, it provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity and Suitable for flat drop cable,3.0mm round cable, 5.0mm round cable. the environmentally sealed and hardened connector to reduce the cost and the time of drop cable deployment in optical access networks.

Features:

• Available in multiple fiber lengths to meet all your FTTX design drop deployment.
• Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
• Designed to reduce the cost and time of drop fiber deployment in the network.
• Provides superior weather resistance for FTTA and other outdoor applications.
• Can be installs without special tooling.
• 100% tested assemblies built in a controlled environment.
• Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber.
• Flexibility and reliability provides fast and simple deployments within a network.
• Provides bend protection for installation and long term use.
• Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.

Application:

• Multi-purpose Outdoor.
• For connection between distribution box and RRH.
• Deployment in Remote.

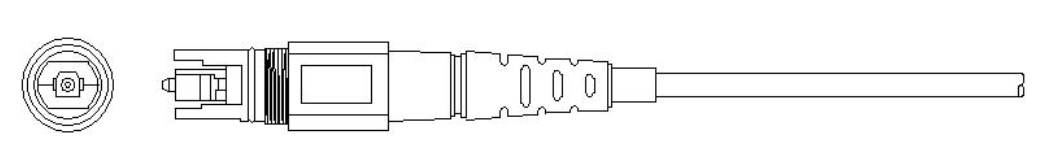

Dimensional Diagrams:

Connector technical data:

Cable technical data:

Cable Paremeters:

HDPE Horizontal Drop Cable

SC APC Horizontal Drop Cable

G657A2 Fiber Optic Drop Cable

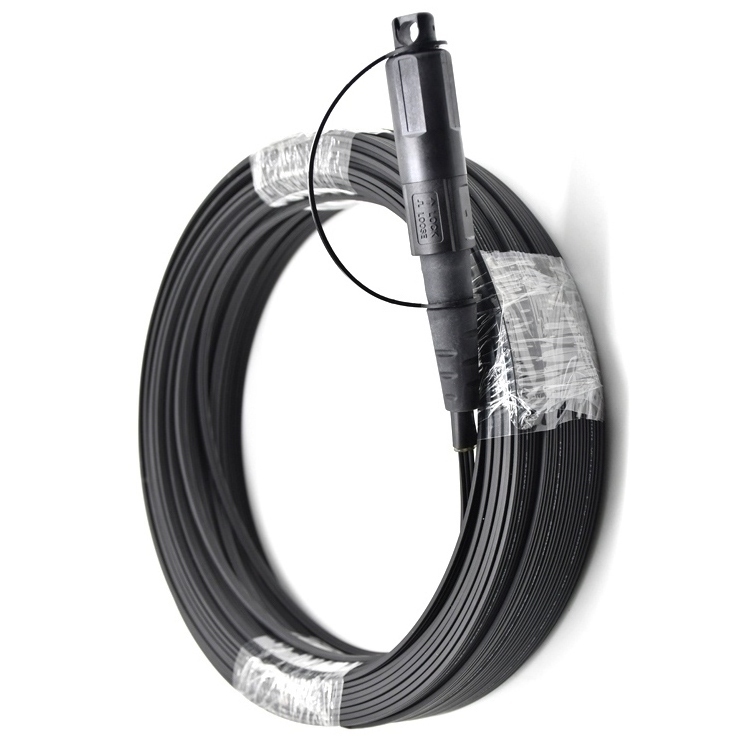

1 Strand HDPE SC APC Horizontal Drop Cable G657A2 50m 100m Images
