FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored

  • 1
  • 2
  • 3

Brand Name : KNOFC or OEM

Model Number : FTTH SC APC Patch Cord

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 60000pcs/Month

Packaging Details : Individual box or customized

Connector type : SC/APC

Cable type : Flat Drop Cable or FTTH Drop Cable or Round Cable

Length : 3M 5M 10M or Customized

Application : FTTH

Fiber type : G657A2 or as your request

Fiber brand : YOFC / Fiberhome / Corning / KNOFC

Jacket material : HDPE / LSZH / TPU

Operating Temperature : -40°C to+70°C

Contact Now

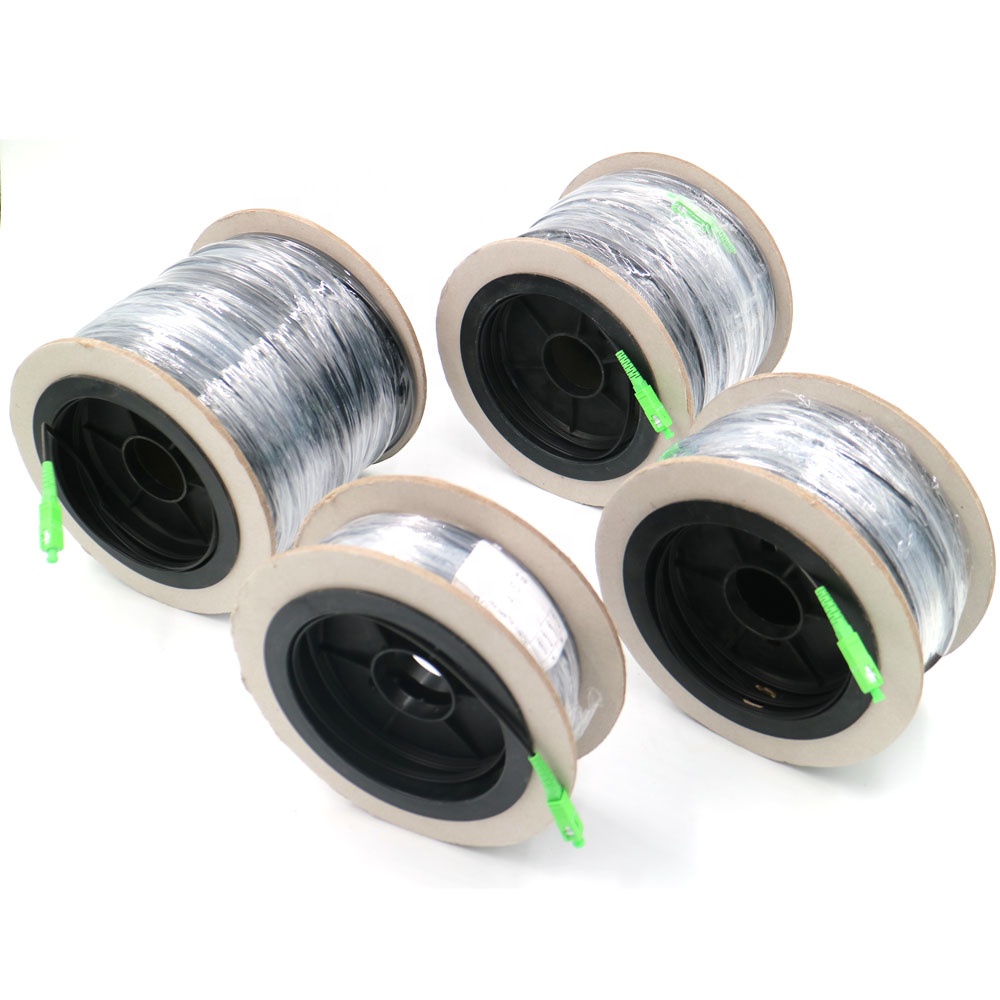

FTTH SC APC Armored Black 9/125 SM SX Optic Fiber Optic Jumper



Description:

FTTH Patch cord or pigtail, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and Flexible Splice, Quick connect and other products combined application, Connector types are SC-PC(APC) and FC-PC(APC) , For FTTH project corridor boxes, drop cable distribution boxes, FTTH fiber boxes and other forms of installation.



Features:

  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
  • Can be installs without special tooling.
  • Threaded style coupling.
  • Provides bend protection for installation and long term use.
  • Faster network roll out and customer installations.
  • 100% tested assemblies built in a controlled environment.
  • Lower cost deployment by utilizing plug and play solutions.
  • Custom built solutions with quick turnaround times.

Application:

  • Fiber optic communications in harsh outdoor environments.
  • Outdoor communication equipment connection.
  • FTTx ISP Project.

Specification:

 Product Name  SC APC Armored Patch Cord
 Length  1M/5M/10M/15M/20M
 Connection Style  Simplex
 Fiber Type  G657A2
 Typical Insertion Loss  ≤ 0.20 dB
 Maximum Insertion Loss  ≤ 0.30 dB



Connector technical data:

 Items  Values
 Connector Type  SC/APC
 Insertion Loss  <0.3dB
 Return Loss  >60dB



Cable technical data:

 Item  Values
 Cable Type  Outdoor FTTH Drop Cable
 Sheath Material  LSZH
 Messenger Wire  1.0±0.02mm
 Steel Wire  0.5±0.02mm
 Fiber Type  G657A1 / G657A2
 Cable Diameter  (2.0±0.1)x(5.0±0.2)mm



Cable Paremeters:

 Cable type  Diameter(mm)   Weight
 (kg/km)		   Tensile strength
   Long/short term
            (N)		   Bending radius
  Dynamic/static
         (mm)		  Storage temperature
            ( ℃ )
 GJYXCH-1~4    2.0*5.0mm     22         300/600       20D/10D          -20~+70
