S Hook Drop Cable Clamp

Product Categories
Shenzhen Knofc Communication Co., Ltd.
Contact Now

S Hook Drop Cable Clamp

  • 1
  • 2
  • 3

Brand Name : KNOFC or OEM

Model Number : Plastic FTTH Drop Cable Clamp S-hook

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/week

Packaging Details : Wooden iron drum

Number of Conductors : 1

Type : Hardware Fittings

Cable diameter : 3mm

Application : Ftth drop cable connect

MBL : 1.5KN

Operation Temperature : -60~+60°C

Knots : 2/ 3/ 4

Shim Type : Dimpled , Serrated , Plastic

Structure : Suspension Clamp

Drop Cable : 1-2pair , 6 pair

Contact Now

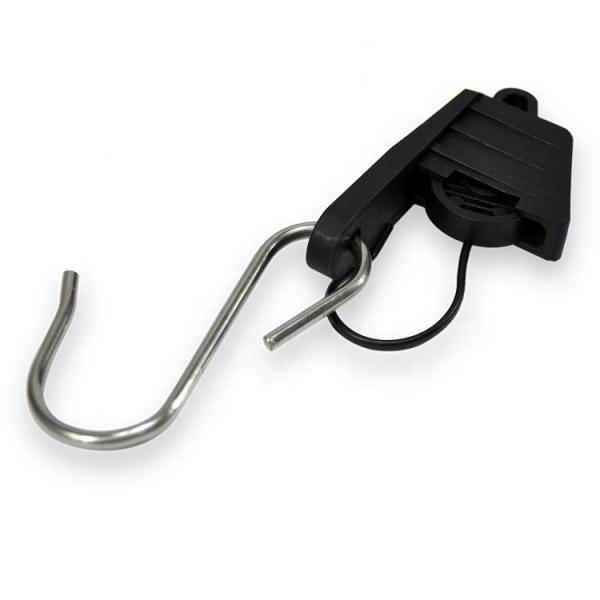

FTTH Fiber Optic Drop Cable Clamp with S Hook Herraje de Fibra Optica



Description:

The drop wire clamp is to connect a triplex overhead entrance cable to a devices or buildings.Widely used both indoor installation and outdoor installation.Provided with a serrated shim to increase hold on drop wire. Used to support one and two pair telephone drop wire at span clamps,drive hooks, and various drop attachments.



Features:

1. Material:Plastic and S Hook aluminum
2. for managing the fiber optic drop cables 1-2 pair
3. Support and tension flat electrical wire
4. Effective and time saving for cabling
5. Application:telecom construction



Specification:

Product Name FTTH drop cable wire clamp
Model number Wire clamp
Brand Name Wanbao
Weight 36g
Material Plastic
Color Black
Size L 8.5CM
Type S Type
Max Load 4KN
Application For ADSS or FTTH drop cable
Max Pull Force 65KGS
Characteristic UV Resistance and strong tensile
Function Fixed Cable Clamp
Sample Available



Application:
For installation put an aerial drop wire cable in clamp’s shell. Place a part of tension clamp on top of optical fiber or telephone cable with raised embossing, against cable. Insert wedge in shell. Install the bail wire on drop wire hook and fixate in shell.



S Hook Drop Cable Clamp


Product Tags:

S Hook Drop Cable Clamp



FTTH S Hook Clamp



FTTH Drop Cable Clamp


Buy cheap S Hook Drop Cable Clamp product

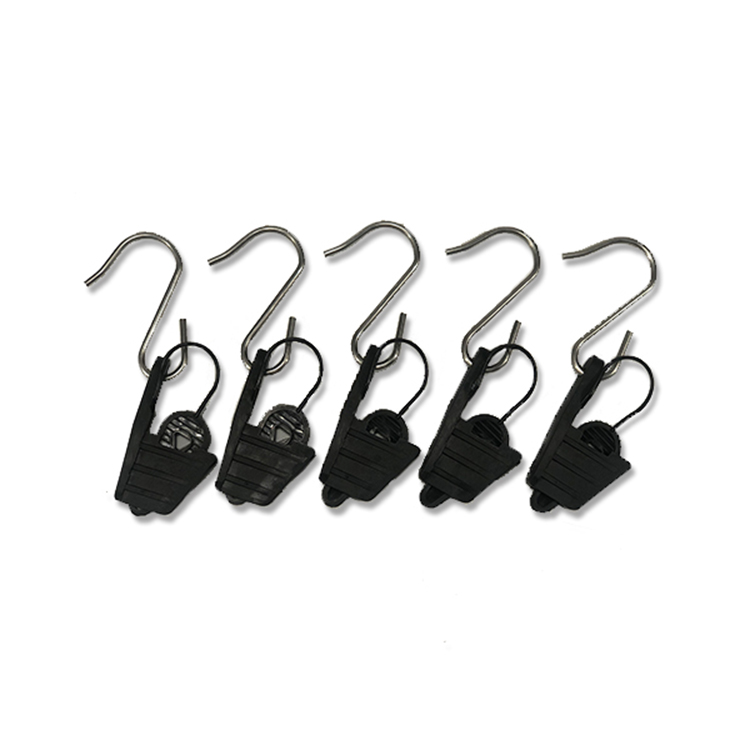

S Hook Drop Cable Clamp Images
