SC APC Fast Connector FTTH Field Assembly Optical Connector

Product Categories
Shenzhen Knofc Communication Co., Ltd.
Contact Now

SC APC Fast Connector FTTH Field Assembly Optical Connector

  • 1
  • 2

Brand Name : KNOFC or OEM

Model Number : Fast Connector SC/APC

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs/week

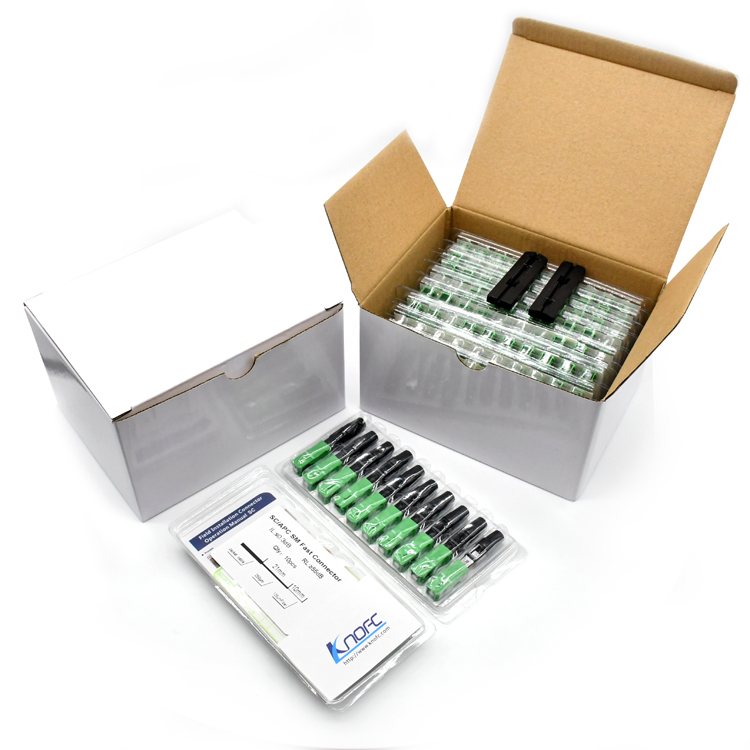

Packaging Details : Plastic box

Fiber Type : Singlemode

Fiber Cable type : 3x2.0mm ftth drop cable

Insertion loss : ≤ 0.25dB

Return loss : ≥50dB

Application : FTTH,LAN,PON&Optical CATV

Operating Temperature : -30°C to+60°C

Contact Now

Fiber Optic SC APC Fast Connector FTTH Field Quick Assembly



Description:

The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a revolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and supperior optical performance,their cable tensiletes complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.



Features:

1.Reliable and superior optical performance.
2.Using corning fiber.
3.Imported Brand matching gel(FIS).
4.Print manufacturer name on fast connector body.
5.Easy for assembling with mechanical splice and no polishing.
6.Lock and open the structure to make sure optical fiber, flexible, easy to use.
7.Operating Wavelength: 1310nm, 1490nm, 1510nm.
8.High temperature cycle test 24hours( -40-85℃) is stable working in poor condition.
9.Analysis 3D ferrule (3D geometry test)



Optical Characteristic:

 Items  Specification
 Application  Drop cable.Indoor cable
 Fiber mode  Single mode or Multi mode
 Fiber type  G.652D, G.657A1
 Fiber cable  3.0*2.0mmrubber-insulated optical cable ∅3.0/∅2.0 /∅0.9 insulated optical cable
 Fiber diameter  0.125mm
 Force holds 2 x 3mm cable type at the beginning of the fast connector  ≥ 40 N, loss ≤ 0.4 dB (sample cable length: 22 - 28 cm, test time: 2 minutes)
 Fiber lock  Lock holds fiber reliability, bears hang force ≥ 3.0 N, attenuation changes ≤ 0.2 dB.
 Working wavelength  1310 nm, 1490 nm, 1550 nm
 Operation time  About 50S (no fiber cut)
 Insertion loss  ≤0.3dB
 Insertion Loss Typical value  0.3dB
 Return Loss  UPC≥45,APC≥55
 Fastening strength of naked fiber  ≥3N
 Tensile strength  ≥40N
 Reusable  ≥10 times
 Operating Temperature  -40～+85℃
 On-line tensile strength(20N)  ΔIL≤0.3dB
 Mechanical durability (500 times)  ΔIL≤0.3dB
 Drop-off test(drop-off height4m,once per  direction,totally 3 times)  ΔIL≤0.3dB

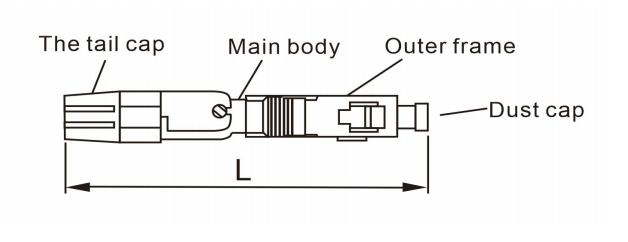

Measured the Structure:



SC APC Fast Connector FTTH Field Assembly Optical Connector





SC APC Fast Connector FTTH Field Assembly Optical Connector
