GJPFJV Distribution OM2 12 Core Round Tight Buffered Fiber Optic Cable

  • 1
  • 2

Brand Name : KNOFC or OEM

Model Number : GJPFJV

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1km

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200km/week

Packaging Details : wooden drum

Fiber type : OM2 50/125

Fiber count : 12C

Jacket material : LSZH/PVC

Application : Indoor cabling and distribution

Contact Now

GJPFJV Distribution Cable OM2 12 Core Multi-core Round Tight Buffered Distribution Indoor Fiber Optic Cable



Description:

GJPFJV Multi-core round tight buffered distribution indoor fiber optic cable with good mechanical and environmental characteristics. Flame retardant characteristic meet the rquirements of relevant standards. The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards. Soft, flexible and easy to do stripping, splicing and cabling.





Optical Fiber Characteristic:

    G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm



Technical parameters:

  Cable type     Diameter(mm)     Weight
   (kg/km)		  Tensile strength
 Long/short term
           (N)		  Bending radius
 Dynamic/static
       (mm)		 Storage temperature
         ( ℃ )
  GJPFJV-4C            4.8      16.2       1000/3000        20D/10D        -20~+70
  GJPFJV-6C            5.2      20.0       1000/3000        20D/10D        -20~+70
  GJPFJV-8C            6.2      26.0       1000/3000        20D/10D        -20~+70
  GJPFJV-12C            6.8      31.5       1000/3000        20D/10D        -20~+70



Features:

  • Flexible, flame-retardant & color coded outer jacket.
  • Non-unitized designs provide space savings and cost advantages.
  • Work as pigtails and patch cords.
  • Optical communication cables for inside plant installations.
  • Sitable for indoor use, communication equipment.

Application:

  • Indoor cabling and distribution.
  • Interconnection of fiber optic equipments, especially ODF.
  • Used in patch cords and pigtails





GJPFJV Distribution OM2 12 Core Round Tight Buffered Fiber Optic Cable




Product Tags:

12 Core OM2 Fiber Optic Cable



OM2 Tight Buffered Fiber Optic Cable



GJPFJV Tight Buffered Fiber Optic Cable


Buy cheap GJPFJV Distribution OM2 12 Core Round Tight Buffered Fiber Optic Cable product

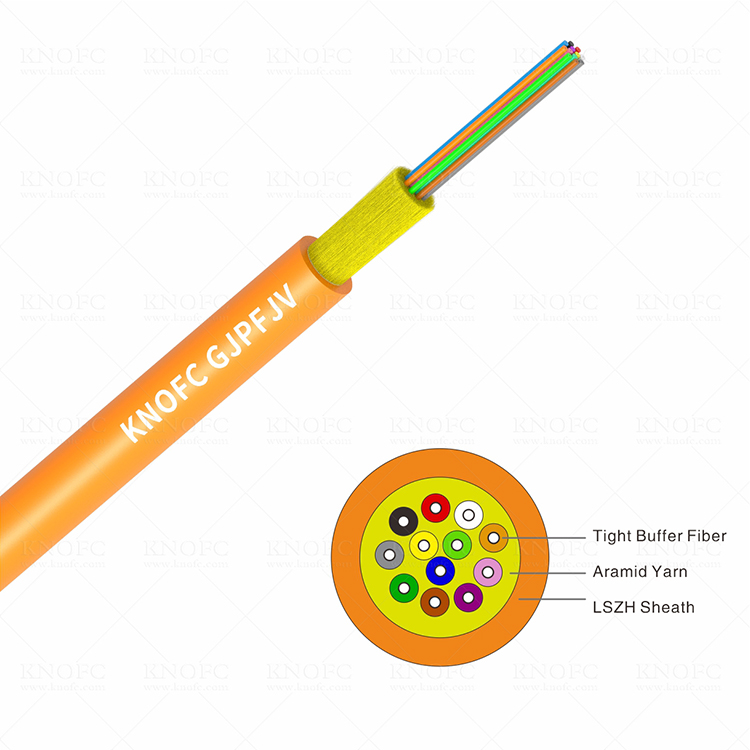

GJPFJV Distribution OM2 12 Core Round Tight Buffered Fiber Optic Cable Images
